      MIETHKE M.scio®

      Non-invasive telemetric pressure measurement

      Importance and limitations of conventional ICP monitoring

      Many pathological conditions such as traumatic brain injury, intracranial hemorrhage, or hydrocephalus may be associated with a life-threatening increase in intracranial pressure (ICP). [1] Accurate determination of this value is therefore a prerequisite for the application of ICP – lowering measures. [2] It is not possible to adequately quantify intracranial pressure based on symptoms or imaging alone. [3], [4] Therefore, catheter-based sensors are often used, which provide continuous access to ICP values and thus facilitate treatment. [7] However, decision making with such conventional sensors can be very complex and risky, requiring multiple surgical procedures that also result in recurrent costs for surgery, hospitalization, and equipment.



      Different icons for importance and limitations of conventional ICP monitoring
      • Physical connection to patient required [9]
      • Increased risk of infection [4], [6], [7]
      • Malfunctions [12]
      • Unsuitable for MRI [10]
      Different icons for importance and limitations of conventional ICP monitoring
      • Time-consuming preparation and calibration needed [1]
      • Unsuitable for long-term monitoring [4], [8]
      • Incorrect treatment decision [14]
      • Baseline shifts (> 10-20 mmHg) and drifts [3], [5], [14]

      Importance and limitations of shunt-based ICP management

      Why more knowledge on shunt performance is needed

      Management of ICP in hydrocephalus patients often involves implantation of a shunt. Advances in shunt technology, particularly adjustable and gravitational valves, have significantly improved patient outcomes. [15], [16]

      However, finding the best possible patient specific pressure setting and verifying shunt function can be difficult and time consuming.

      Different icons for importance and limitations of shunt-based ICP management
      • Unspecific symptoms
      • Multiple pressure adjustments
      • Cause of symptoms remains unclear

      Shunt assessment is challenging, expensive and not risk-free

      Currently available invasive and non-invasive methods such as shunt tap or computed tomography (CT) cannot reliably assess shunt function. [17], [18], [21]

      Different icons for shunt assessment is challenging, expensive and not risk-free
      • Absence in ventricular size
      • Low negative predictive values

      Surgical exploration of shunt function puts the patient at risk, is costly and is often shown to be unnecessary in hindsight. [18] In addition, cranial CT has been shown to increase the risk for brain tumors. [22]

      Different icons for shunt assessment is challenging, expensive and not risk-free
      • Increased risk of infection [18]
      • Risk of brain tumors [22]
      • High associated costs [18]
      • Uneccessary removal of shunt [18]

      M.scio® – permanent solution for ICP management

      M.scio® is the first ICP sensor approved for permanent implantation. With the means of the Reader Unit Set, M.scio® provides straightforward, non-invasive and easy-to-use real-time ICP measurements. [23] No calibration, zeroing or complex setup is required before implantation and measurements.The M.scio® saves time by avoiding unnecessary hospitalizations, investigations, radiation exposure and revisions. [16], [25-27]
      Surgery time for valve implantation is not significantly prolonged. [23] As a consequence, the M.scio® is also highly cost-efficient compared to traditional clinical practice. [26]

      Clinical studies have shown a potential of...

      • 0%

        Reduction in acute presentations to hospital [26]

      • 0%

        Cost saving per patient compared to non M.scio® supported therapy [26]

      • 0%

        Reduction in CT Scans [26]

      ... as well as reduction of number of unneccesary revisions [16], [25-27]

      Guidance for hydrocephalus management

      • Up to

        0%

        of patients reported improvement of clinical symptoms after valve adjustments based on M.scio® readout. [16], [26]

      Implants

      M.scio® is available in four different designs, with either "dome“ or "flat" housing. Both "dome" variants fulfill the characteristics of a conventional reservoir. The measuring cell with integrated microchip is protected from possible penetration by a titanium cover. The reservoir membrane permits: CSF removal for therapeutic pressure reduction and diagnostic analyses, administration of fluids, verification of pressure values.

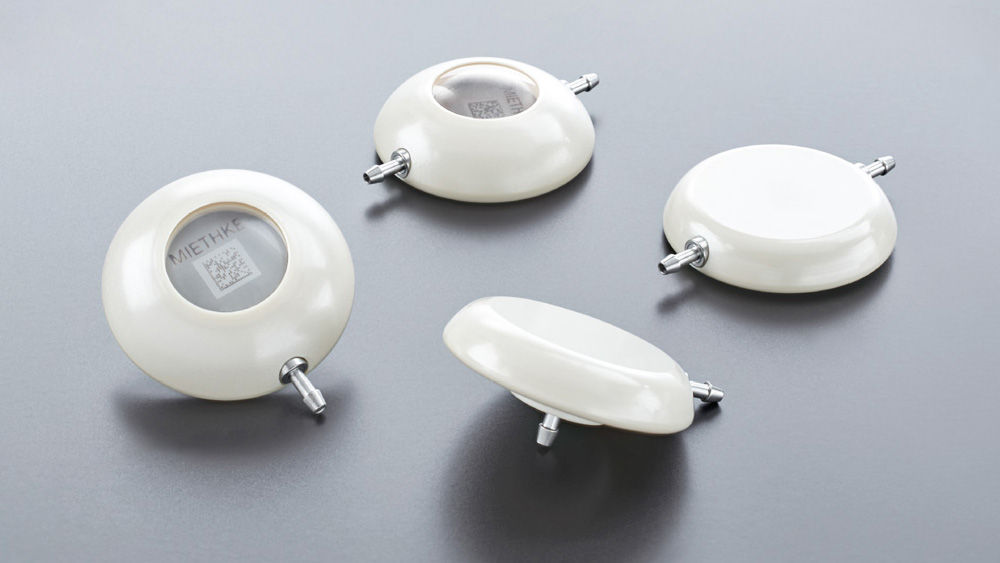

      M.scio® implants in four different designs
      M.scio® reader unit set

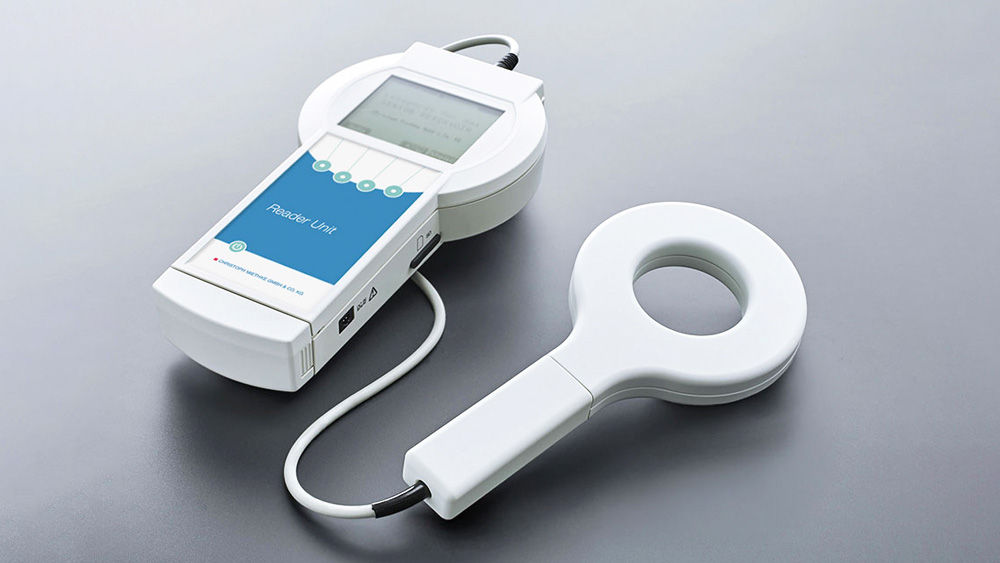

      Reader unit set

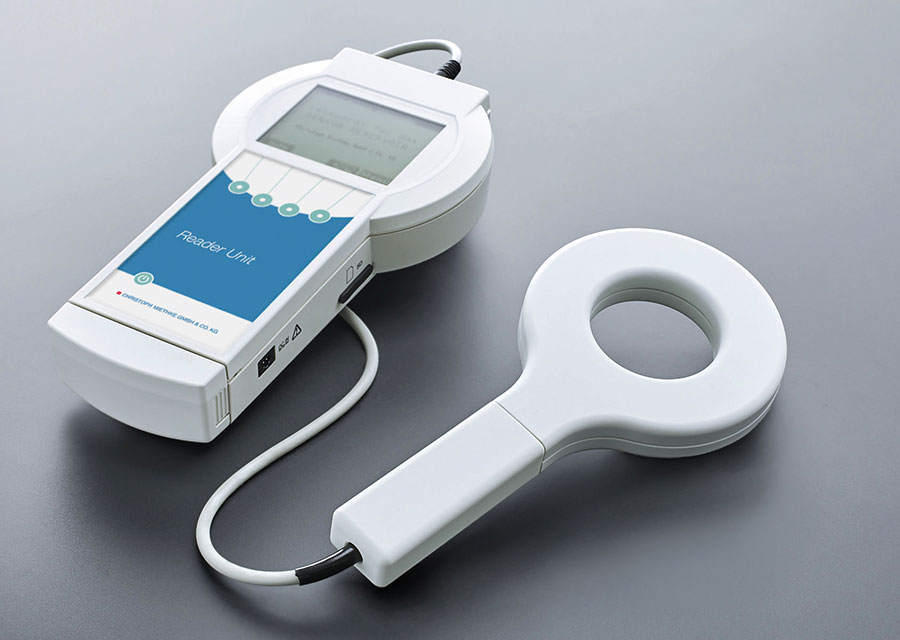

      The measured values of the M.scio® can be read out by the treating physician using the Reader Unit Set. The pressure values are shown on the display in real time and automatically saved with date and time on an SD card. The data and curves can be accessed again with the Reader Unit Set.

      Features

      • Innovative, easy-to-use telemetric ICP sensor [16], [23]
      • For diagnosis and therapy support [16], [29]
      • Improvement of clinical symptoms [16], [26]
      • Reduction of treatment costs [26]
      • Optimized patient management [25-26], [30]
      • Increased sense of security [25]
      • Stable long-term implant [24], [27]
      • Display of detailed pressure curves [25]
      • High sampling rate (44 Hz) [16]
      • Puncturability of the silicone membrane (M.scio® dome variants onlya) [25], [29]
      • Reliable long-term readings [24]
      • MR conditional up to 3 Tesla [31]
      • Four implant variants
      Hydrocephalus & ICP management
      Related information

      Related document

      Request your personal consultation for M.scio®

      Get in contact with us!
